Sound System Instructions

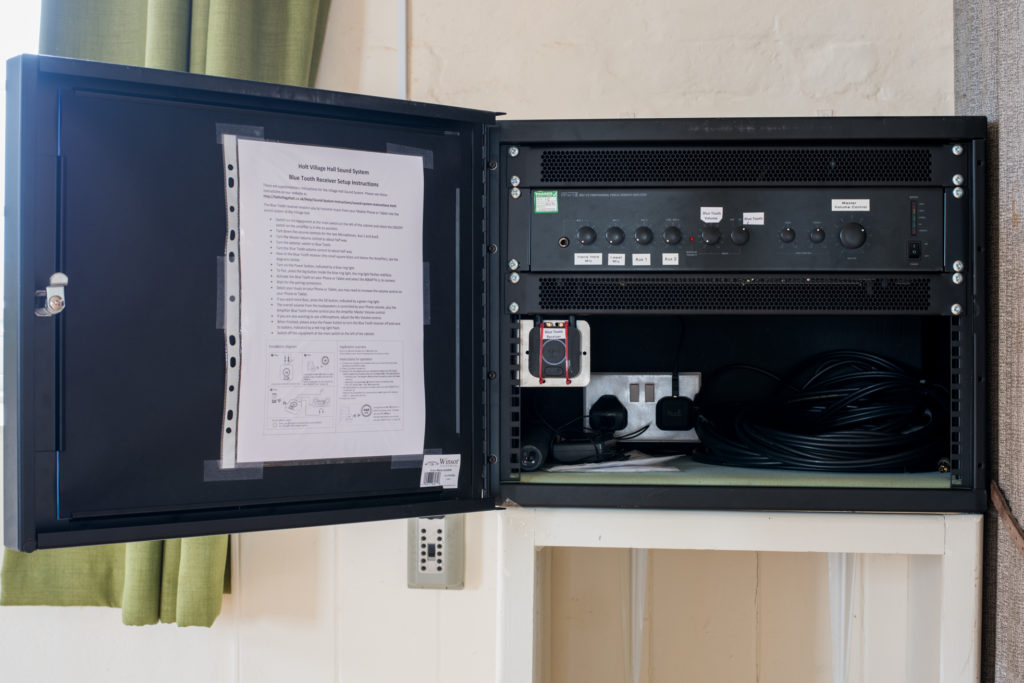

The Sound System is the large black box that can be found on the wall in front of you, above Henry!
The power supply for the Sound System is controlled via a main ON/OFF switch mounted to the left of the cabinet with a red indicator light showing when the System is on. The key to open the Sound System is stored in the key safe next to the cabinet and the number to open the safe is 1953.
The System provides the use of two radio microphones, one hand held microphone and one lapel microphone, plus the ability to play background music via two auxiliary input sockets.
The two microphones together with leads to connect your music source equipment are stored in the cabinet.
Damaged or missing microphones or leads will be charged to the hirer.
Instructions for use:
Switch on the equipment at the main switch on the left of the cabinet and check the ON/OFF switch on the amplifier is in the on position.
For speech select the microphone you wish to use (can be either or both) from inside the cabinet.
Note 1: The hand held microphone is the master and when used will override any background music played through the auxiliary inputs.
Hand held microphone – Switch on using the ON/OFF switch at the bottom end of the microphone.
Lapel microphone – Clip microphone to lapel and clip transmitter to belt or pocket. Switch on using the push button on the transmitter.

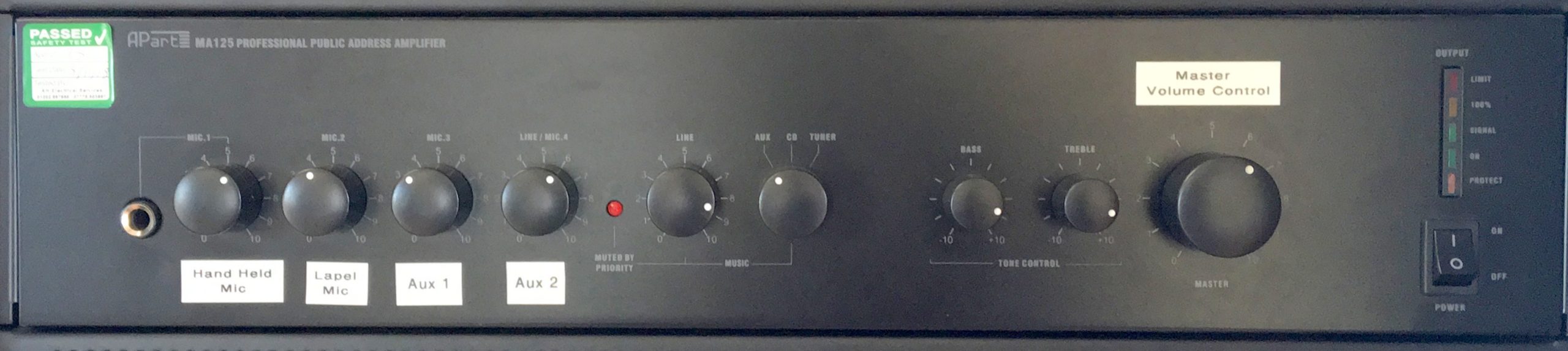

For best results individual microphone controls should be set at 7 and if necessary the volume adjusted using the Master volume control on the amplifier.
Note 2: Both microphones are battery powered and spare batteries are stored in the cabinet. If the spare batteries are used please advise the bookings secretary so that replacements can be provided.

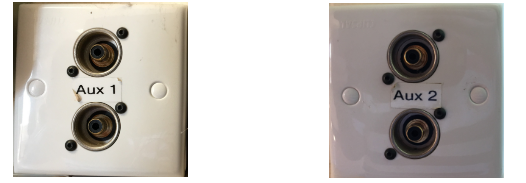

For background music connect your music source, MP3 player, ipod, CD player etc, via one of the two auxiliary input sockets using one of the leads stored in the cabinet. Auxiliary input sockets are located, one to the left of the cabinet above the main ON/OFF switch and one beside the window to the left of the stage.
For best results keep the volume setting on your music source low and adjust the volume with the Amplifier controls.
Please remember this is a residential area and music must NOT be played at an excessive level.
A Bluetooth Receiver is also provided in the Sound System Box.
To activate this, turn on the Receiver and press the big button inside the blue ring to pair – the ring light will flash red/blue. Activate the Blue Tooth on your Phone or Tablet and select the B06APTX-LL and wait for the pairing connection. Select your music on your Phone or Tablet, you may need to increase the volume control on your device. If you want more Bass, press the 3D button, indicated by a green ring light. The overall volume from the loudspeakers is controlled by your Phone volume, plus the Amplifier Blue Tooth volume control plus the Amplifier Master Volume control.
If you are also wanting to use a Microphone, adjust the Mic Volume control.
After use remember to switch OFF the microphones, and the Bluetooth Receiver. Return microphones and any leads used to the cabinet and turn OFF at the main switch. Please ensure you lock the sound system cabinet and return the key to the key safe.
